3KW-11.5KW
Small size, light weight, easy to carry
Suitable for a variety of new energy vehicle
brands and models

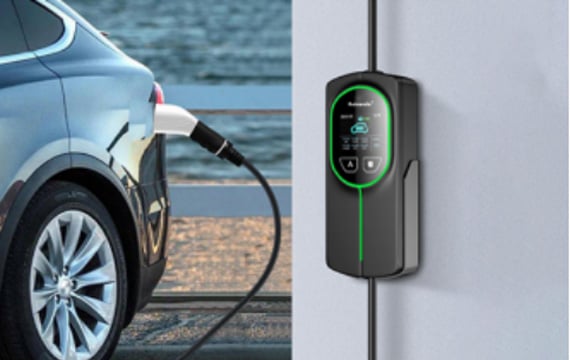

It is small in size, light in weight, easy to carry, and can be easily placed in the trunk to charge electric vehicles anytime, anywhere.
Waterproof level lP65，You can use the item outdoors and do not have to worryeven on rainy days. The shell is made of PC Fireproof Plastic, Light but robust, So it will not be easily damaged.

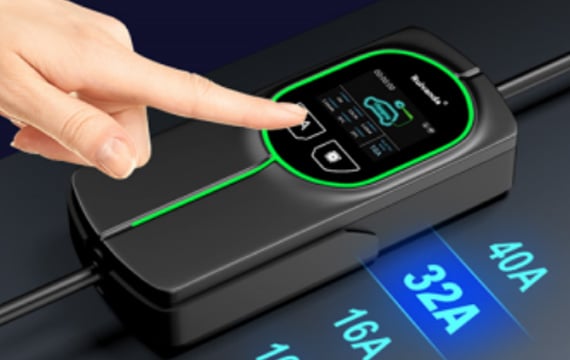

It supports intelligent adjustment of current, voltage and power, and can be automatically adjusted according to different charging environments and the needs of electric vehicles to achieve a more efficient charging effect.
Technical Features
| Technical Features-P03 | |||
| size | (230*100*57)mm | ||
| Net Weight | 2.18kg | ||
| Standard | EN IEC 61851-1:2019 | SAE J1772 | GB/T |
| Input/Output Voltage | 100~240/400VAC50/60 Hz 1/3Phase | 100~240 VAC50/60 Hz 1Phase | 220/380 VAC±20%50/60 Hz 1/3 Phase |
| Output Current | 8A-32A | 8A-48A | 8A-32A |
| Max Power | 3.5KW-11.5KW | 3kW-11KW | 3KW-11KW |
| Cable Length | 5m or more lengths are Customizable | ||
| Standby Power | <1.5W | ||
| Communication | Wi-Fi 802.11b/g/[email protected] GHz | ||
| User Interface | LED(RGB)/LCD(2.4inch)/Button | ||
| Protool | OCPP1.6J(option) | ||
| Charging Interface | IEC 62196 Type 2/SAE J1772 Type 1/GB/GB/T 20234.2 | ||
| IP Degree | IP65 | ||
| Operating Temperature | -25~+50℃ | ||
| Humidity | Max.95%(non-regulating) | ||
| Protection | Overvoltage Protection, Undervoltage Protection,Overcurrent Protection, Residual Current Protection,Overtemperature Protection,CP Protection, Flame retardant protection. | ||
| Note | Charging Interface can be changed according to customer needs | ||
